Motorised blinds are fast becoming commonplace in homes. In addition to sun protection, they offer convenience and privacy, and they can significantly contribute to a smaller carbon footprint. But what exactly goes on behind the scenes?
The broader family of motorised window treatments includes everything from standard window louvres and skylights (such as Velux) to open-roof louvres (such as Vergola). When these products are integrated into a central home automation control system, the lifestyle and energy-saving benefits speak for themselves.
To understand how to implement them, we need to look at the two broad categories of motorised blinds and louvres: mains-rated four-wire blinds and two-wire DC voltage louvres.
1. Mains-Rated 240V AC Blinds (Four-Wire Systems)
A common and straightforward motorised window treatment is the 240V AC mains blind. These units typically have four wires, which are usually colour-coded and labelled:
- Up
- Down
- Neutral
- Earth
Applying mains power to the ‘up’ wire retracts the blind, and applying power to the ‘down’ wire extends it. The motors themselves typically reside inside the tube core around which the blind material is wound.
The Role of Internal Limit Switches
It’s vital to note that these units incorporate internal limit switches, which are usually set by the vendor or installer. These switches tell the motor to stop as soon as the blind has reached its extremities. Without them, the motor would continue turning, potentially destroying the blind material, the pelmet, or the housing.
Automated Weather Stations
Manufacturers like Somfy provide complete, intelligent control solutions for blind motors, such as sun, rain, and wind weather stations (e.g., the Eolis and Soliris range).
These units dynamically assess environmental conditions:
- Too Sunny: The blinds are automatically driven down to provide shade, minimising the cooling burden on air-conditioning systems.
- Too Windy: An outdoor awning can be automatically retracted to avoid structural wind damage.
- Raining: The system can extend awnings if it detects rain while occupants are entertaining outdoors.
2. Integration with Central Automation Control Systems
Motorised blinds are frequently tied into broader home automation networks like Dynalite and C-Bus. However, installers must adhere to strict wiring protocols to protect the hardware.
⚠️ Critical Safety Rule: Never apply power to the ‘up’ and ‘down’ wires at the same time. Doing so will permanently damage the motor and void the manufacturer’s warranty. System controllers must be programmed so that even during a power reset, the system can never energise both wires simultaneously.
The Traps of Parallel Wiring
Mains-rated blinds do not like being wired in parallel. Installers often attempt parallel wiring to reduce hardware requirements and lower overall costs. Unfortunately, this causes current to flow backwards through the limit switch circuitry. As a result, the blinds may move up and down normally but will constantly “hunt” at their extremes, never quite reaching their limits.
To avoid this, you have two choices:
- Dedicated Relays: Control each motor with a dedicated pair of changeover (double-throw) relays.
- Motor Controllers: Use purpose-built multi-blind controllers (from brands like Somfy) that allow a single pair of automation relays to safely command multiple blinds simultaneously.
While dedicated motor controllers ensure safe operation, they do add cost and introduce more physical hardware, meaning more potential points of failure.
Recommended System Hardware
- Dynalite DDRC810DT: An ideal choice for these setups, utilising eight 10A changeover relays to control up to four motorised blinds independently.
- C-Bus L5504RVFC: Features four changeover relays tailored for standard mechanical interlocking.
- C-Bus L5501RBCP: A more recent, cleverly designed controller specifically built for individual remote blind or curtain control.
The Importance of Directional Delays
Another vital consideration is ensuring there is an adequate time delay programmed when a blind motor changes direction from ‘up’ to ‘down’. Rapid switching puts immense mechanical and electrical stress on the motor, which reduces its lifespan and causes rapid overheating. This delay should be handled entirely within the programming logic so it remains transparent to the homeowner.
3. Low-Voltage DC Motorised Louvres (Two-Wire Systems)

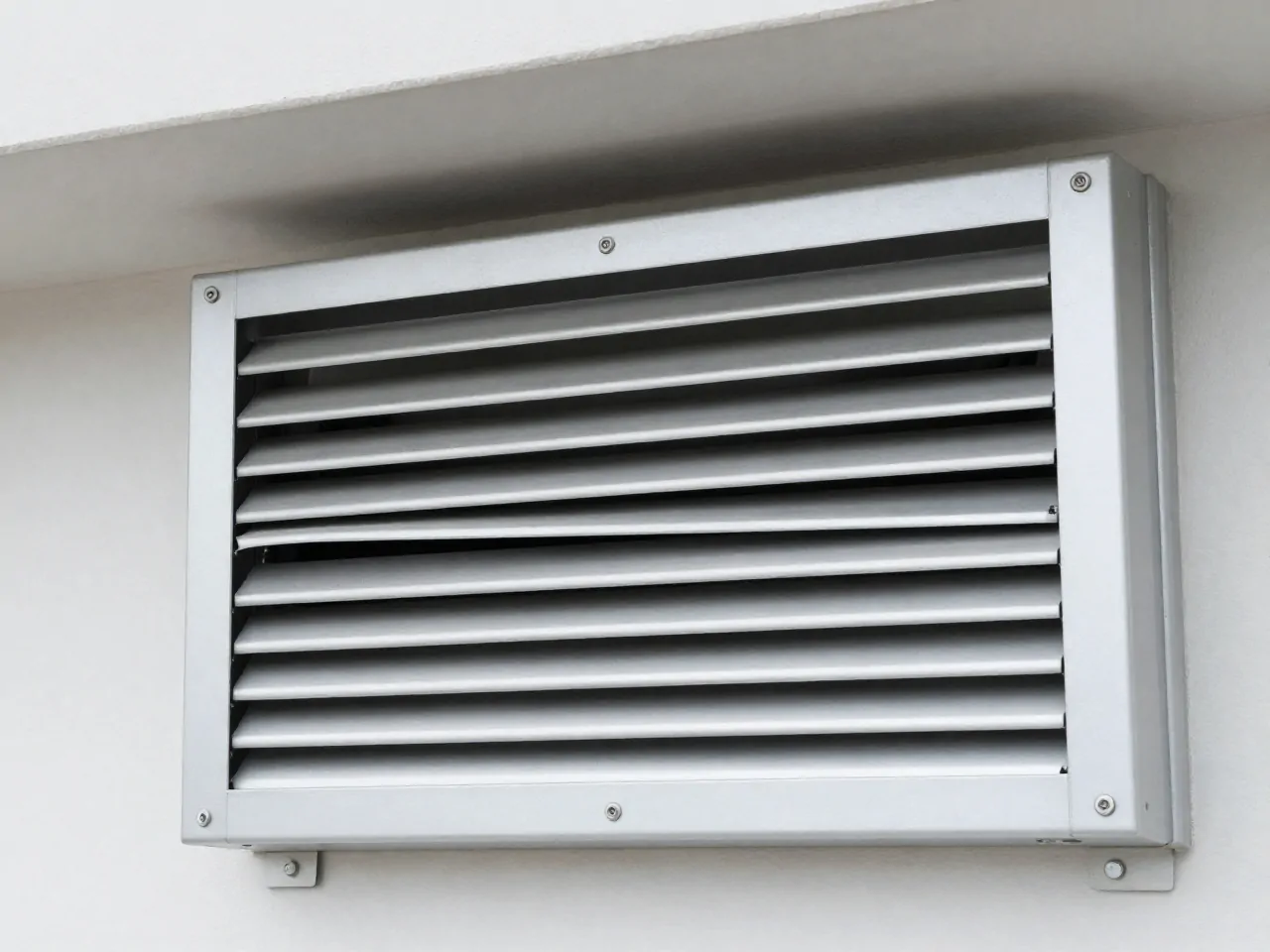

DC voltage motorised louvres (such as the Breezway Powerlouvre) function similarly to mains blinds, but with a major technical twist: the polarity of the voltage must be reversed to change the motor’s direction.
For manual operation, manufacturers typically recommend using two normally open bell-press switches:
- Idle State: Both the positive and negative terminals of the motor are tied to the negative side of the power supply. Because the voltage differential across the motor is zero, the louvres stay perfectly still.
- Active State: Pressing either button shifts the contacts, imposing a positive or negative voltage across the motor terminals to drive the louvres open or closed.
Integrating these into a smart home system follows the same logic regarding directional time delays and limit switches. While you can technically achieve control using just two changeover relays, utilising a three-relay configuration is much cleaner. The third relay allows you to completely isolate the power supply from the motor when it is not in motion.
4. Alternate Control Methods: Dry Contacts & Pulse Closures
Beyond standard AC and DC motors, some window systems feature proprietary control brains that handle the internal power manipulation for you. These systems are usually triggered via dry contact closures or voltage pulses.
A classic example is the Vergola roof louvre system. While it operates on its native control box, it easily interfaces with smart homes via a precise sequence of dry-contact pulses on the input terminals designated for Select, Auto, Close, and Open.
Motorised Blinds: The Power of Seamless Integration
The days of dealing with just a single, isolated motorised window in a home are gone. Modern smart homes now routinely implement automated window treatments across every room. The ultimate challenge for the system designer and installer is to integrate these diverse systems into a simple, uncluttered, and highly intuitive user interface that truly enhances the occupant’s day-to-day lifestyle.
