Lighting design across Sydney has evolved significantly over the past decade. Whether you are walking through a newly developed multi-residential complex in the Inner West, a multi-storey corporate headquarters in the CBD, or a premium architectural smart home overlooking the Northern Beaches, modern lighting design is no longer just about flicking a wall switch. Today, high-end residential and commercial properties require smooth scene transitions, precise energy management, and individual control over every luminaire.
To achieve this level of control, property developers, architects, and specialist integrators turn to an internationally recognised standard: the DALI Lighting Control System.
Despite its widespread specification across Australia, many property owners, facility managers, and even standard residential electricians view it as a highly complex technology. If you are trying to understand how this platform functions, how it differs from traditional electrical circuits, and how it can be used to optimise your property, this engineering guide will explain the complete mechanics from the ground up.
Defining the Platform: What is DALI?
To truly understand a DALI Lighting Control System, we must first define the core acronym. DALI stands for Digital Addressable Lighting Interface. It is not a proprietary brand owned by a single manufacturer, nor a software platform locked behind restrictive licensing agreements. Instead, DALI is an international open-standard protocol (strictly defined under the global standard IEC 62386).
This international compliance framework means that an LED driver manufactured by Tridonic can sit on the same network loop as an Osram ballast, a Philips sensor, or a Dynalite gateway, all communicating in a single, unified digital language.
Traditional high-voltage electrical setups group lights physically onto hardwired circuits. If you wire ten downlights to a single physical circuit breaker or wall dimmer, those ten lights are locked together permanently, switching on, turning off, or dimming as one unit. Altering that operational behaviour down the track requires a licensed electrician to open up your plasterboard walls, pull down ceiling tiles, and re-route the electrical cabling.
A DALI lighting control system completely separates the high-voltage power supply from the low-voltage control signal line. Every single device on a digital data loop is given its own microprocessor intelligence and a unique, dedicated digital identity known as a short address. Because each fixture is individually addressable, all zoning, scene configurations, and scheduling are managed through DALI lighting programming software. If you want to isolate a single downlight or regroup an entire floor plate, you never need to touch the physical electrical wiring; you simply alter the software database.
The Core Technical Components of the Network
A standard DALI loop requires a small number of specialised hardware components to form a reliable, communicative network.
1. The Low-Voltage Bus Line (The Physical Backbone)
The foundation of any DALI network is the two-wire communication bus line. This simple pair of wires links every driver, ballast, and controller on a shared communication path. Unlike sensitive data cables like Cat-6 or Ethernet, a DALI loop does not require shielded wiring or twisted-pair geometries. It can be run using standard 1.5mm squared two-core active electrical cable, and it can be safely run inside the same conduit or multi-core cable as the 240V mains supply without causing data packet corruption.

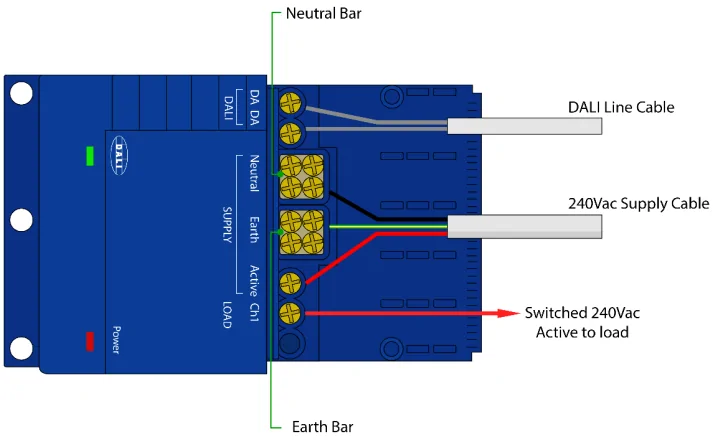

2. The Bus Power Supply (The Engine)
The digital data line requires a dedicated low-voltage DC power supply to remain alive and responsive. A dedicated bus power supply injects a steady low-voltage direct current (typically 16V DC at a maximum of 250mA) into the two-wire loop. When devices communicate, they send binary signals by briefly pulling the voltage down to zero in precise millisecond pulses. Without the bus power supply maintaining a steady voltage, communication fails.
3. Addressable LED Drivers & Electronic Ballasts (The Receivers)
Every light fitting integrated into a digital framework contains a specialised DALI-compatible electronic driver or ballast. This driver serves a dual purpose: it regulates the mains power entering the LED chips, while monitoring the low-voltage bus line for data packets matching its unique address.
4. Input Nodes, Wall Sensors & Keypads (The Triggers)
To activate a scene or adjust illumination zones, you require input devices. This category includes PIR motion detectors, daylight-harvesting sensors, and wall keypads. When a user presses a button on a wall keypad, the device converts that input into a digital command packet and sends it onto the bus line to trigger the appropriate output.
5. High-Level Automation Gateways (The Translator)
While a single loop operates exceptionally well on its own, modern properties across Sydney often integrate lighting with broader environmental networks. This is where advanced DALI lighting control gateways step in. These interface units act as digital translators, bridging your lighting loops into a wider building automation network, such as Clipsal C-Bus, Philips Dynalite, or KNX.
Step-by-Step: How a DALI Network Communication Packet Moves
To demystify how these physical components interact in real time, let us trace exactly how a single software instruction executes across a property when an occupant triggers a command.
Step 1: The Input Trigger Event
Imagine an occupant steps into a kitchen or corporate boardroom and presses the “Dinner Scene” or “Presentation Mode” button on a local switch plate. The local keypad reads this input, processes the command within its internal logic chip, and prepares a small, structured digital data packet.
Step 2: Dropping the Packet onto the Active Bus
The keypad checks the bus line to ensure no other device is transmitting. If the line is clear, it pulls the 16V line down to 0V in a precise sequence of binary pulses. This command string contains a target address, an execution command, and a specific parameter value, such as setting the output to 40%.
Step 3: Global Broadcast and Address Matching
Because every driver, sensor, and relay module is connected to the same two-wire bus, the data packet travels down the line and reaches every device simultaneously. However, devices that do not match the address byte inside the packet will simply ignore the transmission. Only the specific electronic ballast assigned to that exact target address will open the data packet, verify the code structure, and prepare to execute.
Step 4: Execution & Status Feedback Reporting
The matching driver adjusts its pulse-width modulation output, dimming the connected fixture smoothly to the target level over a pre-programmed fade rate. At the same time, the driver sends a verification packet back to the controller, confirming its operational status, energy consumption, and lamp health.
Key Advantages: Why Specify DALI Over Analogue Dimming?
Compared to older dimming configurations like 1-10V analogue lines or phase-cut leading and trailing edge dimmers, the benefits of implementing a DALI network are significant.
Precise Individual Control Over Every Fixture
A single loop supports up to 64 individually addressable devices. Furthermore, those 64 devices can be configured via programming software into up to 16 independent operational groups and up to 16 distinct aesthetic scenes. This means a single cable can run through a concrete ceiling slab while still giving you complete individual control over every light fitting on that loop.
Bi-Directional Communication and Fault Reporting
Traditional lighting setups are one-way: you send power to a fixture, but you have no way of knowing whether it is actually working. DALI is entirely bi-directional. A master building controller can query the active loop in real time. If an LED chip fails, a driver overheats, or an emergency exit battery drops below its required threshold, the affected fixture sends a fault code to the controller, alerting the facility manager to exactly which device has failed and where it sits on the floor plan.
Native Support for Complex Human Centric Lighting
With the arrival of DALI-2 and specialised device specifications, the protocol now natively supports advanced colour temperature tuning. This allows an engineer to execute automated DALI lighting programming paths that follow the natural arc of the sun, shifting colour temperature from a crisp cool white at midday to a soft, warm amber tone as the evening sets in.
System Boundaries and Topology Rules
While the open-standard architecture provides incredible flexibility, it is bound by rigid technical limitations that must be respected during system deployment to avoid data lag:
- The 64-Device Limit: A single loop supports a maximum of 64 addressable channels. If a commercial project or massive estate requires 500 light fittings, our engineers install multiple parallel loops and link them via a central building controller gateway.
- The 300-Metre Cable Length Limit: To prevent data signal degradation and low-voltage drops across long distances, the total cable run between the two furthest points on a single bus line must never exceed 300 metres.
- Flexible Structural Topologies: Unlike IT networks that require a rigid daisy-chain configuration, a DALI bus line can be wired in a star layout, a linear daisy-chain, a branched tree, or a hybrid of all three. The only critical wiring violation is creating a closed physical ring loop.
The Vital Difference Between Physical Installation and Software Programming
The operational success of an automated project relies entirely on separating the physical installation from the technical logic configuration layers. A licensed electrician is essential for managing the high-voltage infrastructure safely. They mount enclosures, pull cabling, install supply runs, and wire fixtures to code.
However, turning those raw, unconfigured physical components into a highly intelligent environment requires specialised software systems integration. Once the electrical infrastructure is in place, a qualified systems integrator connects to the bus line and handles the full commissioning process: enumerating device addresses, resolving conflicts, writing scene logic, and configuring control interfaces.
Furthermore, if an old system has become unstable, laggy, or unresponsive due to poor past data mapping or power surge corruptions, a specialised diagnostics team can plug protocol analysers directly into the live data bus to trace errors, clean out corrupt data packets, and execute an advanced automation repair solution to restore total stability without ripping out your high-value hardware assets.
Frequently Asked Questions
Can a DALI lighting control loop operate without an active network gateway or internet connection?
What is the difference between DALI and DALI-2 standards?
Can I use standard dimmable LED globes on a digital addressable bus line?
What causes command latency or delays when pressing a wall switch?
Is it possible to reprogram or expand a network if the original installer didn't leave the software backup files?
Bringing It All Together: Why Intelligent Lighting Starts With the Right System
The overall comfort, energy efficiency, and functional luxury of a modern space rely entirely on the software intelligence powering its digital infrastructure. Specifying premium lighting hardware is only half the battle; ensuring those components respond instantly, dim smoothly, and communicate without data friction requires disciplined, engineering-led software commissioning. By eliminating configuration bottlenecks and balancing data paths, your automation platform can transform from a source of unexpected technical frustration into a highly resilient, adaptive asset that works perfectly for decades to come.
