DALI Phase Dimmer

$192.50

The Diginet DALI Phase Adaptive Dimming Device (DGOZ-DM-400W-01) is designed for dimming up to 400W of connected lighting via DALI commands issued on a connected DALI line.

The DALI Phase Adaptive Dimming device is fully tested to and complies with DALI standards IEC 62386.

Category:

Description

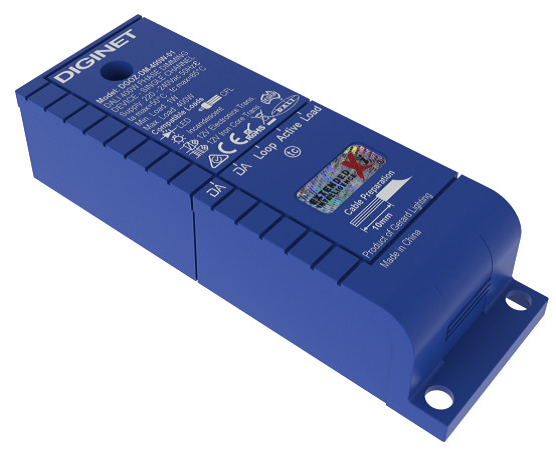

The Diginet DALI Phase Adaptive Dimming Device (DGOZ-DM-400W-01) is designed for dimming up to 400W of connected lighting via DALI commands issued on a connected DALI line.

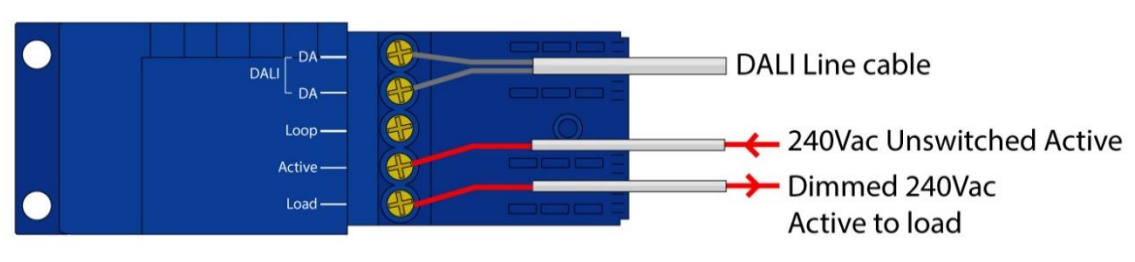

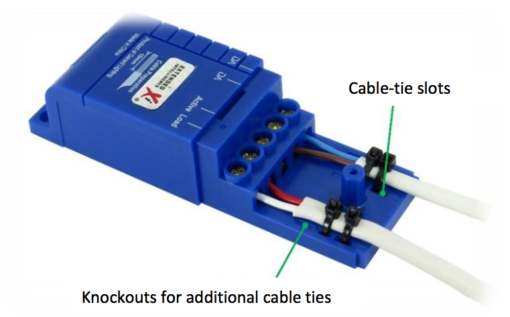

The DALI Phase Adaptive Dimming device includes a large area for terminating all 1.5mm2 or 2.5mm2 double insulated cables (240Vac Active supply cable, switched load cable and DALI Line cables).

  • Two wire dimming device – No Neutral required, only 240Vac Active and Load conductors
  • Line powered – draws only 2mA from a DALI Line
  • DALI compliant (IEC Standard 62386- 205, DALI Device Type 4)

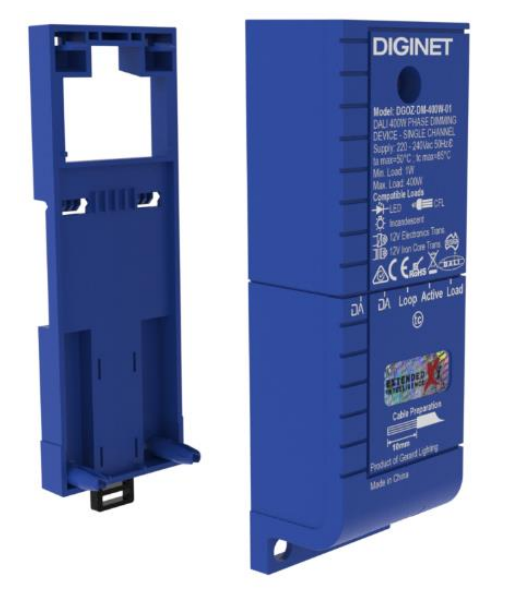

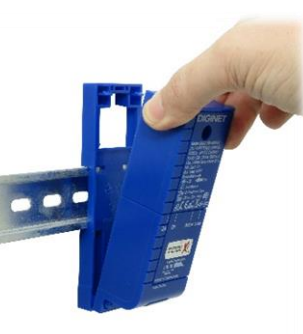

  • Suitable for mounting in a ceiling void or on DIN rail via the included DIN rail mounting bracket

The DALI Phase Adaptive Dimming device is fully tested to and complies with DALI standards IEC 62386.
